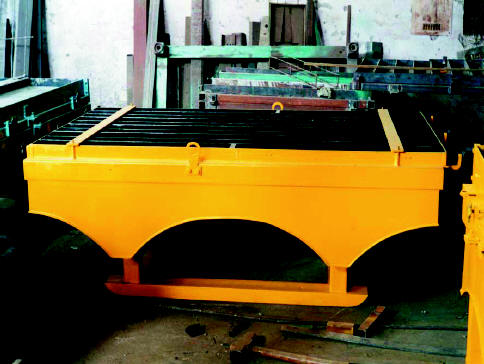

Model : CC- 1
|
USE
For production of concrete door/window frames as a substitute to timber.
|
|
Production Capacity:
(per day in 8 hr shift)
Energy Source:
|
4 Door or 5 window frames
Electrical, 3 phase, 440 volts
|
|
Size of machine :
Weight of Machine :
Size of Door/Window frame :
Cross-section size :
Type :
Manpower :
Compaction by :
Compressive strength :
Power requirements :
|
2400x1200x750mm
500 kgs
Door : 2100x1035mm or
Window : 1130x1035 mm or any other pre-determined size.
100mmx60mm
Portable
Skilled – 1, Unskilled – 3
High amplitude vibrations
250 kg/cm2
2 HP
|
|
Others :
Both Single Rebate and double rebate frames can be manufactured.
Production capacity can be increased by replacing the moulds
Can be designed/fabricated for different sizes of final products.
In built provision for hinges, locks, tower bolts etc
|
|
|
