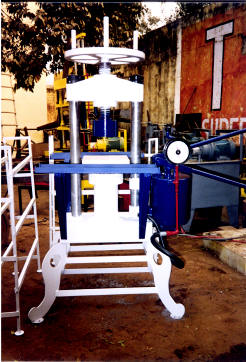

Model : ASH- 40

USE

For production of Terrazo and Chequered tiles for flooring and walling.

Production Capacity:
(per day in 8 hr shift)
Energy Source:


400 - 500 tiles

Manual

Size of machine :
Weight of Machine :
Size of Tiles :

No. of Tiles per cycle :
Type :
Manpower :
Energy Transmission :
Compaction by :
Compressive strength :


900 x 800 x 1200 mm
300 kgs
Terrazo tile : 225 x 225 x 25 mm thickness
Chequered tile : 250 x 250 x 25 mm thickness
1 No.
Light duty machine, most suitable for site works
Skilled – 2, Unskilled – 2
Hand operated hydraulic compression
Hydraulic pressure
200 kg/cm²

Others :
Can be designed/fabricated for different sizes of final products. Used for production of kerb stones, interlocking pavement by changing the moulds.
